Swimming Pool or Spa Balance Tank Control

Swimming Pool Or Spa Balance Tank Control

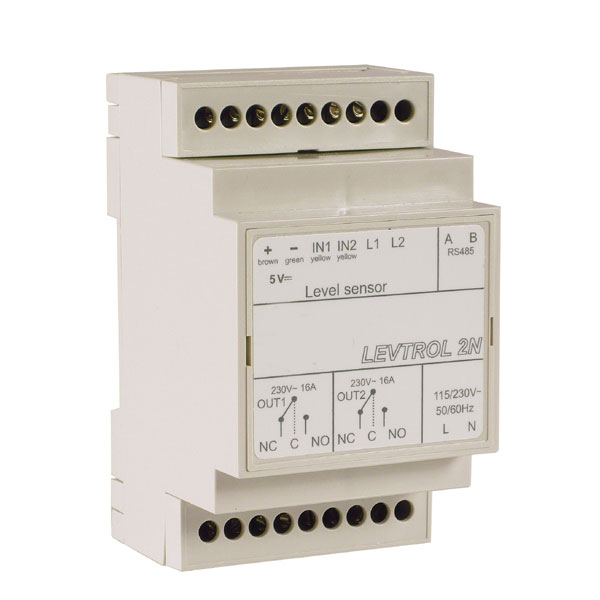

Electronic water level control for capacitive level switches. Typical application: water level control in compensation tanks (for example inb swimming pools). LEVTROL 2 provides n.02 dry contact relays output (max 16A@230V) with standard delay setting of 3-10-30-60 seconds. The delay permits to avoid "false" signals due to waves in the tank, for example. Power supply 230V and standard DIN enclosure. An RS485 ommunication port and the open protocol ADOP (available upon request) allow to integrate LEVTROL 2N even in a home or building automation system.

Water level control for pools and overflow SPAs balance (compensation) tanks. Please contact us if you need help sizing and balance tank.

Swimming Pool Or Spa Balance Tank Control - Main Functions

• 2 working modes: as automatic MIN-MAX level control or two levels stand-alone
• 4 delays setting to avoid false activation
• Compatible with capacitive level sensors
• Output: 2 relais dry-contact
• Communication port RS485 (open protocol)

• Power supply: 115/230V Freq.: 50/60Hz
• Nominal power: 2VA
• Housing: plastic
• Mounting: rail DIN EN 50022
• Connections: 2x9 screw terminals (0.05÷2.5mm²)
• Input: 2* digital TTL
• Output: 2*relais SPDT, max 16A@115/230VAC (0.75Hp)
• COM: RS485
• Protection degree: IP20>

Construction

• Dimensions:87.5 x 35.5 x 60.0 mm

• CE Certification
