Surecast RB Pump Spare Part Motor Item 2

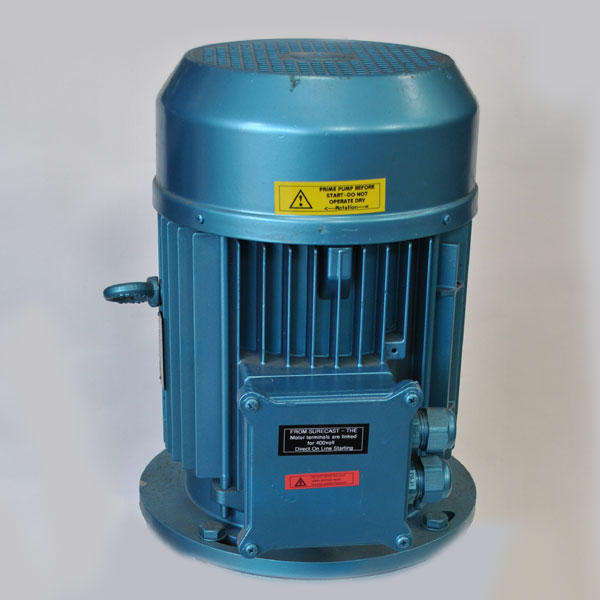

Surecast RB Range Spare Parts - Motors

Please make a note of the motor data tag and the pump frame (63 or 71). Feel free to call us if you can not see the motor you require. If in doubt please call.

Motor Options Three Phase 2 Pole:

• 63 Frame - 0.18/0.2Kw - 2102010 - £295.44
• 63 Frame - 0.18/0.2Kw - 2387010 - £566.18 Marine Spec
• 63 Frame - 0.25/0.28Kw - 2062010 - £321.13
• 63 Frame - 0.25/0.28Kw - 2054010 - £581.91
• 63 Frame - 0.25/0.28Kw - 2102010 - £1022.27 Atex Exd Zone 1
• 71 Frame - 0.55/0.62Kw - 2145010 - £613.36

Motor Options Three Phase 4 Pole:

• 63 Frame - 0.12/0.14Kw - 2284010 - £309.46
• 63 Frame - 0.18/0.2Kw - 2063010- £333.91
• 63 Frame - 0.25/0.28Kw - 1538010 - £337.72

Motor Options Single Phase 2 Pole:

• 63 Frame - 0.18Kw - - £367.78
• 63 Frame - 0.25Kw - 2068010- £383.04

Motor Options Single Phase 4 Pole:

• 63 Frame - 0.18Kw - - £363.22
• 63 Frame - 0.25Kw - 2077010- £378.48

Please contact us for help with your spares. We are happy to help.

Technical Specifications

• Standard Metric frame Motors
• Single or Three Phase Motors
• 2 pole or 4 pole Motors
• 230/400 volt +/- 10%
• IC411 Cooled
• Class F Insulation
• IP55 B5 mounting
• Full spares breakdown drawing are available to download from the resources tab. Alternatively click the images above. Contact us if you have any questions.
